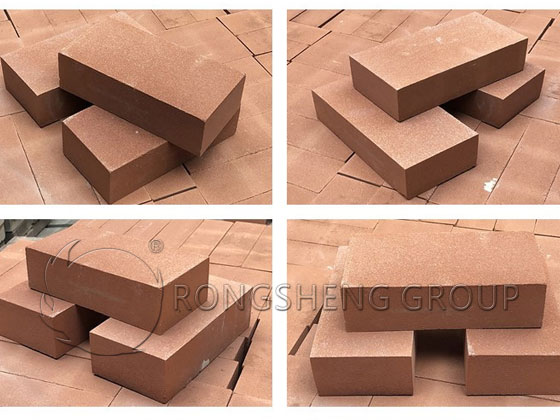

High-Performance Lightweight Clay Insulation Fire Bricks for Thermal Applications

Discover the excellence of our Lightweight Clay Insulation Fire Bricks. Contact us now to place your order and experience top - notch thermal insulation solutions tailored to your needs!
ZHENGZHOU RONGSHENG REFRACTORY CO., LIMITED
https://shmuker.oss-cn-hangzhou.aliyuncs.com/data/oss/60e819f0790f5527ee3d7557/60ee491677a41e157184c1dc/20250604164441/Lightweight-clay-thermal-insulation-brick.jpg

Recommended Products

Product Parameters
PhysicalProperties
AluminaContent: 35% - 48%
BulkDensity: 0.6 - 1.0 g/cm³
Porosity: Higher than 70%
CompressiveStrength: ≥ 6 MPa
ThermalConductivity: 0.15 - 0.25 W/m·K (at 600℃)
See more
ThermalProperties
MaximumServiceTemperature: 1400℃
ThermalExpansionCoefficient: 5 - 7 x 10⁻⁶ /°C (up to 1000℃)
ManufacturingDetails
FiringTemperature: 1200℃ - 1400℃
ManufacturingProcess: Grinding, Mixing, High-Pressure Molding, Firing
Applications
TypicalUses: ["Thermal Boilers","Glass Kilns","Cement Kilns","Electric Furnaces"]
CertificationAndStandards
Certifications: ["ISO Certified","International Safety Certifications"]
Close
Product Details
Product Introduction
Our Lightweight Clay Insulation Fire Bricks, crafted by Zhengzhou Rongsheng Refractory Materials Co., Ltd, a national high - tech enterprise with over a decade of industry experience, are a paragon of quality in the high - temperature industry. These bricks are made from high - quality fire clay materials, with an alumina content ranging from 35% to 48%. Through a meticulous manufacturing process of grinding, mixing, high - pressure molding, and firing at 1200℃ - 1400℃, they offer outstanding thermal insulation and stability. Certified under ISO and international safety standards, our bricks adhere to rigorous quality control. Whether you're in the thermal boiler, glass kiln, cement kiln, or electric furnace industry, our products are your reliable choice for high - performance insulation.
Product Introduction
Advantages and features
1. High porosity ensures effective thermal insulation, reducing heat loss. 2. Low bulk density makes installation easier and more cost - effective. 3. Excellent mechanical strength enables the bricks to withstand extreme conditions. 4. Manufactured by a national high - tech enterprise with strict quality control and international certifications.
Advantages and features
Application Scenario
These lightweight clay insulation fire bricks are suitable for various high - temperature applications, such as thermal boilers, glass kilns, cement kilns, and electric furnaces. They are ideal for industries in the global high - temperature market, including energy, manufacturing, and metallurgy, offering customized and high - efficiency solutions to meet diverse customer needs.
Corporate Information
ZHENGZHOU RONGSHENG REFRACTORY CO., LIMITED
Service Guarantee
Address
Litang Industrial District, Xinmi, Henan, China.
Advisory Message
Pre-sales advice
After-sales service
Rongsheng service. Pre-sales consultation, solutions, after-sales service. After-sales online installation guidance.
1-99 units
$50/unit
100-499 units
$45/unit
500-999 units
$40/unit
1000+ units
$35/unit
Sample Request
$70/sample
Customization Fee
$200-500 depending on specifications
Product Specifications
Alumina Content
35% 40% 45% 48%
Bulk Density
0.6 g/cm³ 0.8 g/cm³ 1.0 g/cm³
Porosity
30% 40% 50%
Thermal Conductivity
0.08 W/m·K 0.12 W/m·K
Compressive Strength
5 MPa 10 MPa 15 MPa
Firing Temperature
1200℃ 1300℃ 1400℃
Application Areas
Thermal Boilers Glass Kilns Cement Kilns Electric Furnaces
Standard Certifications
ISO ASTM EN
Customization Options
Shape Size Packaging Surface Finish
